1x4 HDMI 2.0 HDBaseT Splitter support 4K@60hz
Introduction
LINK-MI LM-SPH05-100 is a 4-Port HDMI Splitter Extender which supports HDMI2.0, 4K@60hz. It transmit up to 100m under 1080p, 70m under 4k.
Features
1. Incorporates HDBase-T technology
2. Distributes 1 HDMI source to 4 HDBaseT Output with 1xlooping HDMI output
3. Bandwidth up to 18Gbps, resolution up to 4k @60hz YUV 4:4:4
4. Transmit up to 100m under 1080p, 70m under 4k
5. Support HDR10; HDCP2.2/1.4
6. Bi-Directional wide band IR and RS232 pass through
7. Support Micro USB updating
8. Power adapter 24V2A
9. Support POC remote power supply 24V2A
Specification
| Operating Temperature Range | -5 to +40℃(+23 to +104℉) |
| Operating Humidity Range | 5 to 90%RH (No Condensation) |
| Input Video format | 720P / 1080P / 4K@60hz |
| Data transfer speed rate | 18 Gbps(Maximum) |
| Input port | 1xHDMI |
| Output ports | 4xHDBaseT port, 1xHDMI loop out |
| Output Video Format Supported | DTV/HDTV:480i/576i/480P/576P/720P/1080i/1080P, 4K VESA resolution:1920x1200 |
| Transmission Distance | 100m under 1080P 70m under 4K |
| Power consumption | 15W(HOST); 30 W(POC) |
| Dimension (L×W×H) | 270x190x44mm |
| Net Weight | 1640g |
| Note: Specifications are subject to change without notice |
Connection Diagram

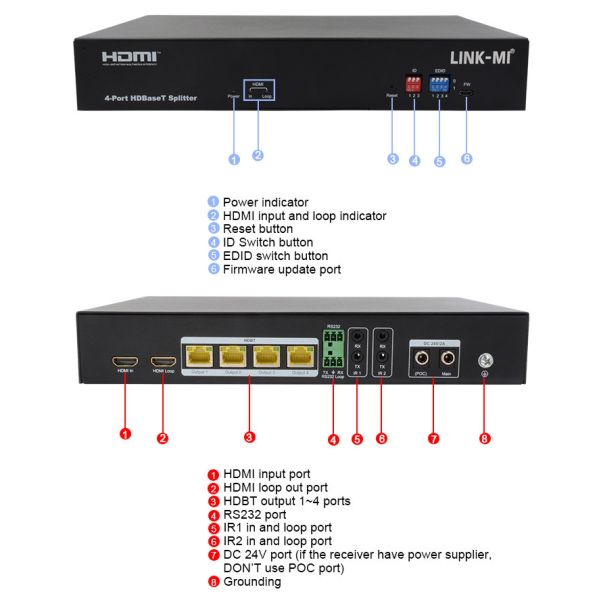

Panel Description
FAQ
Q1: Are you a factory or trading company?
A1: As a professional manufacturer, we supply HDMI related products more than 10 years in China.
Q2: Why should we choose you?
A2: We can offer products with factory price, good quality, best service and long warranty.
Q3: How about your product service?
A3: We can offer OEM and ODM, print your brand, your design on the product based on your order quantity.
Q4: How about the payment terms?
A4: We accept bank transfer, western union, money gram, paypal, Bank of China or cash as payments.
Q5: How do you ship the package?
A5: DHL, Fedex, EMS, by air, by sea...etc.
Q6: What kinds of warranty do you offer?
A6: Our excellent after-sale service team will provide you technical support online. We offer one year warranty for our products.
Q7: How could I buy the products I need if there is no price on the website?
A7: You can send us your inquiry about the products you need. Our sales will reply you within 24 hours to help you make the order.
User Manual:
LM-SPH05-100 100m 1x4 HDMI 2.0 HDBaseT Splitter (...
